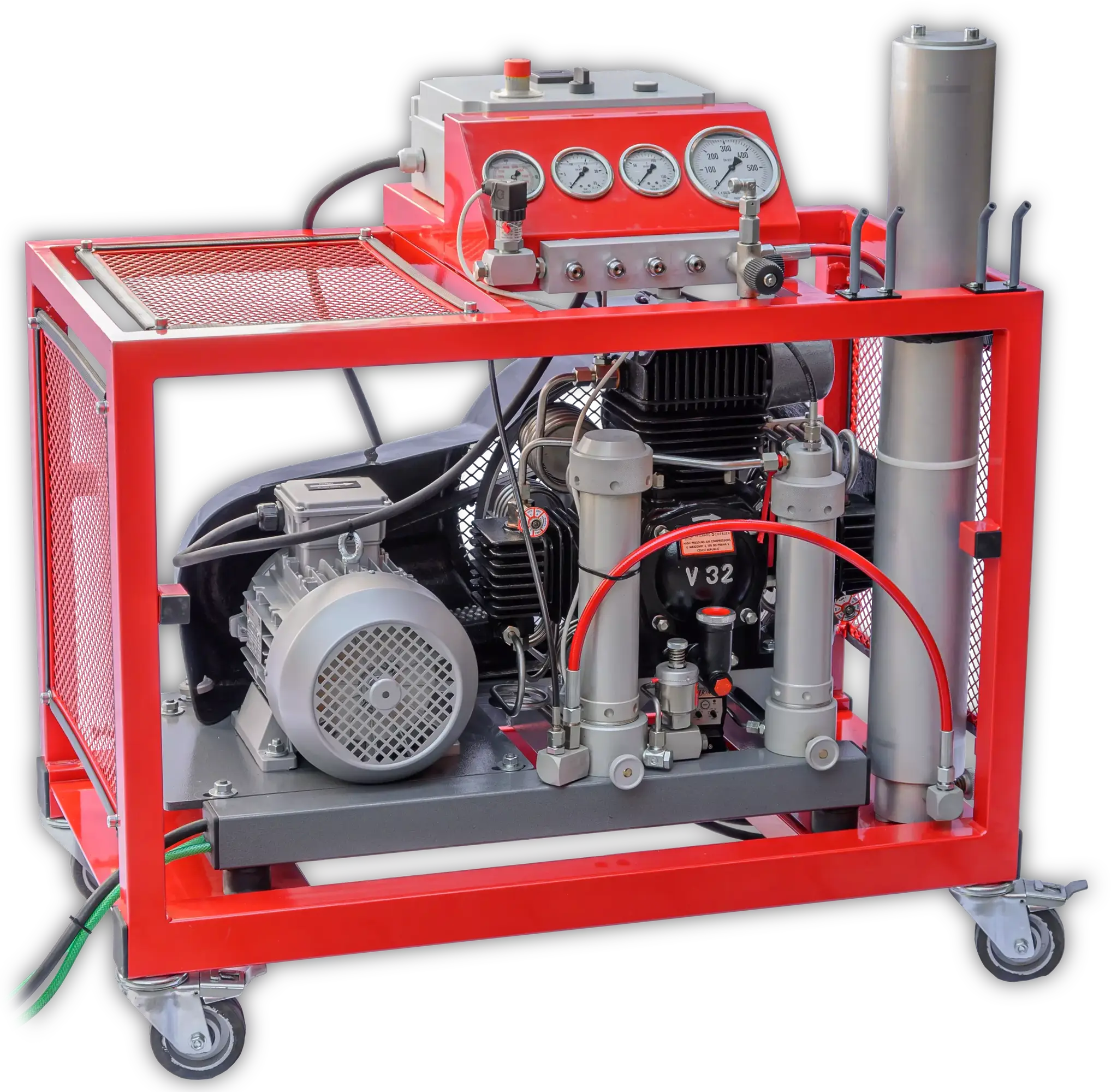

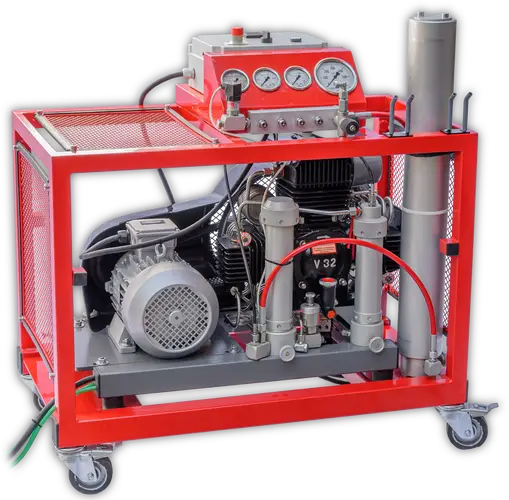

Astra V32 Stabil E

excl. VAT

6 760 €

Specification

  • Casters for easy handling
  • Automatic condensate drainage, including collection tank
  • Operating hours counter
  • Pressure switch for automatic shutdown when maximum pressure is reached
  • Central STOP button
  • Option for permanent connection to a pressure tank or distribution system via a ball valve
  • High-capacity filter with filter cartridge (capacity 75 operating hours)
  • Pressure maintenance via a check valve
  • Stainless steel intercoolers
  • Separators after 2nd and 3rd stage
  • Safety valves after every stage
  • Pistons with steel piston rings
  • Adjustable final pressure (220/330 bar)
  • Clean breathing air according to EN 12021 standard
  • Three-phase electric motor (400 V / 3-phase / 50 Hz)
  • Power cord with plug

Standard Equipment

  • 4x outlet (filling hose, cross-type filling valve with pressure gauge, G5/8)
  • 1x outlet via ball valve
  • 1x filter cartridge (pre-installed in compressor)
  • 2 liters of synthetic oil (1l pre-filled + 1l spare)
  • User Manual
  • Tools
  • O-rings
Technická data
Output 250 l/min
Drive 3-phase electric motor 7.5kW
Weight 175 kg
Length x Width x Height 1000 x 550 x 1050 mm
Speed 1700 rpm
Noise level 85 dB(A)
Fill time for 10L cylinder to 220 bar 8.5 min
Molecular sieve 2/3 (???g)
Activated carbon 1/3 (???g)
Cylinder bore 1. St 75,5mm / 2. St 28mm / 3. St 14mm
Stroke 49 mm
Oil quantity 0,95 l
Paper air filter V1
Maximum filling pressure 330 bar
Compressor type Piston
Cooling type Air-cooled
Number of cylinders / Number of stages 3 / 3
Intake pressure (absolute) 1 bar
Suction temperature 20 °C
Air temperature at the outlet after aftercooler 30 °C to 35 °C
Oil LM 750 synthetic compressor oil
Maximum air flow rates according to ČSN EN 12021 (DIN 3188)
Water < 25 mg/m³
Oil < 0,5 mg/m³
CO < 5 ppm
CO2 < 500 ppm
Technické specifikace motoru 7,5 kW
Output 7.5 kW
Rated current 16.5 A
Speed 2,890 rpm
Shaft height 112 mm
Voltage 400 V
Frequency 50 Hz
Type 3-phase
