Astra Atom E
excl. VAT
2 487 €

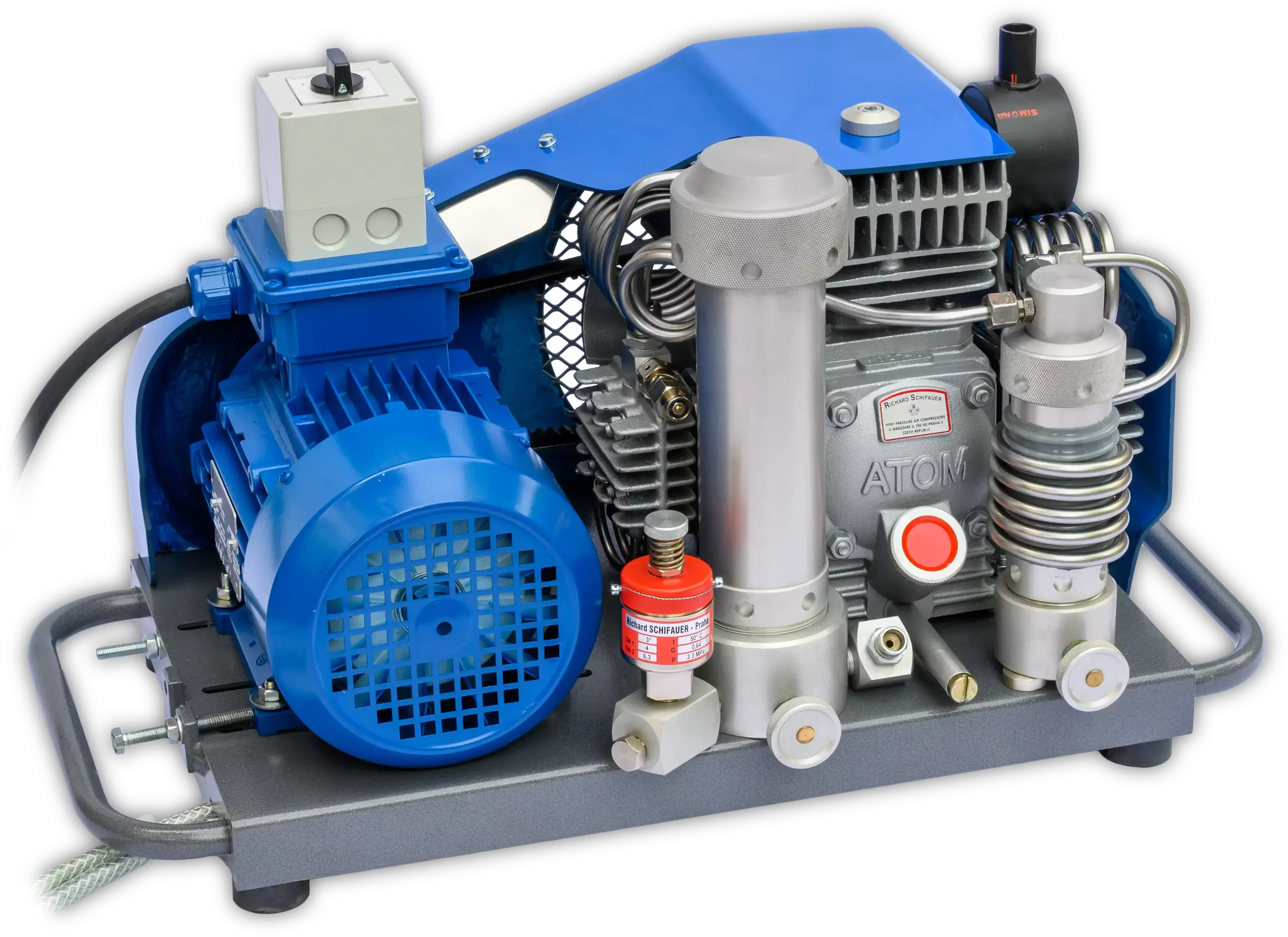

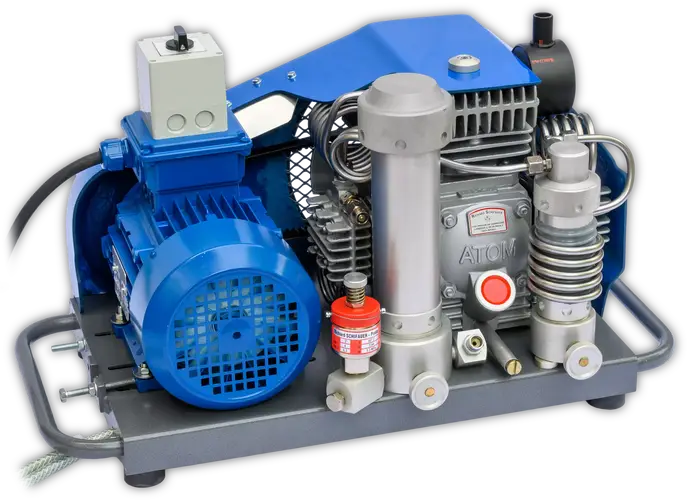

The Astra Atom E is a small, easy-to-use portable air compressor. Thanks to its compact size, it is particularly well-suited for travel and occasional use.
Specification
- Steel frame with carrying handles
- Manual condensate drainage
- Stainless steel intercoolers
- Separators after 2nd and 3rd stage
- Safety valves after every stage
- Pistons with steel piston rings
- Adjustable final pressure (220/330 bar)
- Clean breathing air according to EN 12021 standard
- Three-phase electric motor (400 V / 3-phase / 50 Hz)
- Power cord with plug
Standard Equipment
- 1x filter cartridge (pre-installed in compressor)
- 0.45 liters of synthetic oil (pre-filled) + 1l spare
- 1x outlet (filling hose, cross-type filling valve with pressure gauge, G5/8)
- User Manual
- Tools
- O-rings
| Technická data | |
|---|---|
| Output | 100 l/min |
| Drive | 3-phase electric motor 3kW |
| Weight | 48 kg |
| Length x Width x Height | 630 x 390 x 390 mm |
| Speed | 2200 rpm |
| Noise level | 80 dB(A) |
| Fill time for 10L cylinder to 220 bar | 25 min |
| Molecular sieve | 2/3 (115g) |
| Activated carbon | 1/3 (105g) |
| Cylinder bore | 1. St 68mm / 2. St 28mm / 3. St 14mm |
| Stroke | 25 mm |
| Oil quantity | 0,45 l |
| Paper air filter | V2 (PND 13-027 80) |
| Maximum filling pressure | 330 bar |
| Compressor type | Piston |
| Cooling type | Air-cooled |
| Number of cylinders / Number of stages | 3 / 3 |
| Intake pressure (absolute) | 1 bar |
| Suction temperature | 20 °C |
| Air temperature at the outlet after aftercooler | 30 °C to 35 °C |
| Oil | LM 750 synthetic compressor oil |
| Maximum air flow rates according to ČSN EN 12021 (DIN 3188) | |
|---|---|
| Water | < 25 mg/m³ |
| Oil | < 0,5 mg/m³ |
| CO | < 5 ppm |
| CO2 | < 500 ppm |
| Technické specifikace motoru 3 kW | |
|---|---|
| Output | 3 kW |
| Rated current | 7 A |
| Speed | 2,830 rpm |
| Shaft height | 90 mm |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Type | 3-phase |
