Astra Atom E1

excl. VAT

2 342 €

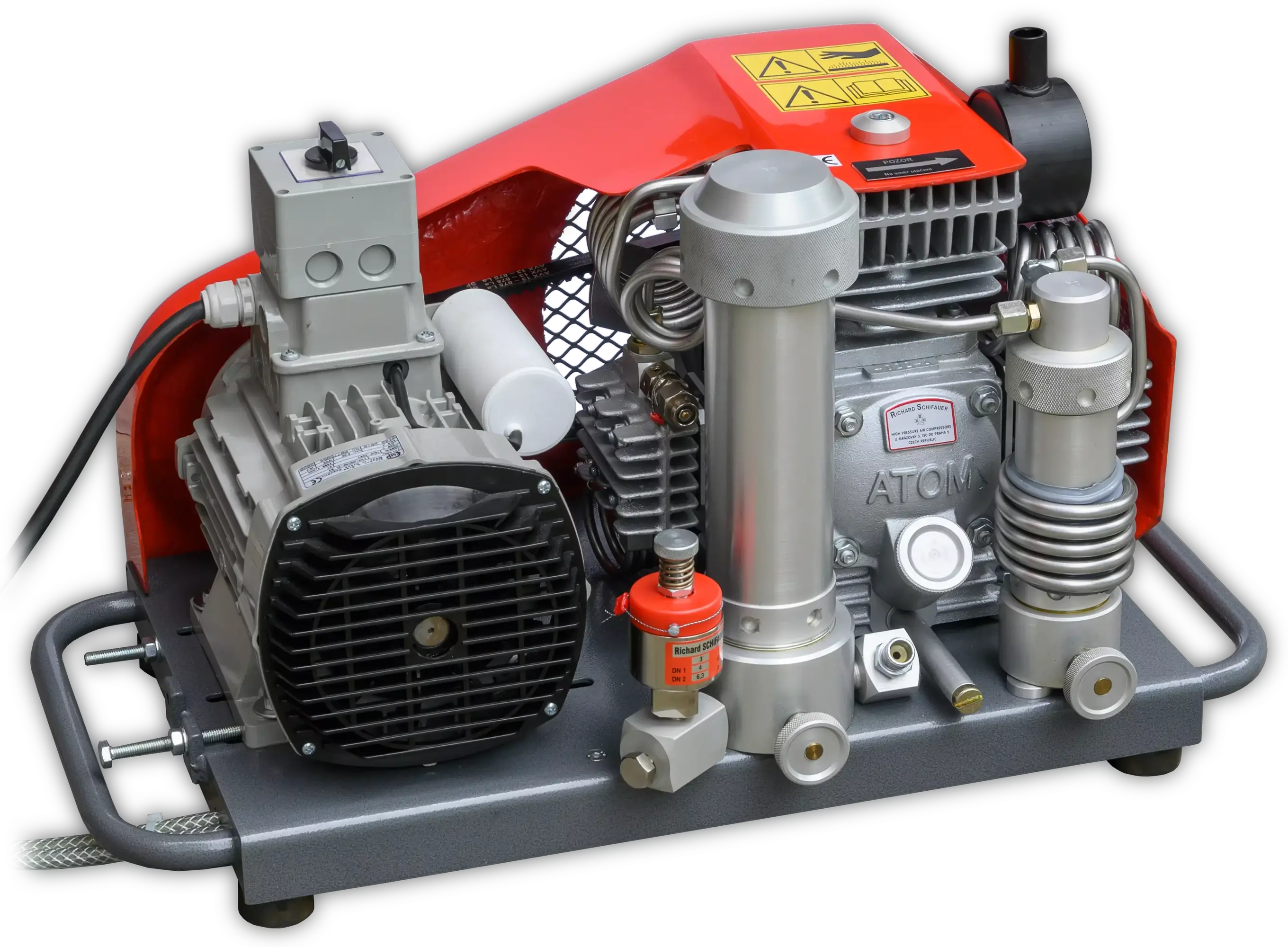

The Astra Atom E1 is a small, easy-to-use portable compressor. Thanks to its compact size, it is particularly well-suited for travel and occasional use. The single-phase electric motor can be plugged into a standard 230V outlet.


Specification

  • Steel frame with carrying handles
  • Manual condensate drainage
  • Stainless steel intercoolers
  • Separators after 2nd and 3rd stage
  • Safety valves after every stage
  • Pistons with steel piston rings
  • Adjustable final pressure (220/330 bar)
  • Clean breathing air according to EN 12021 standard
  • Single-phase electric motor (230 V / 1 phase / 50 Hz)
  • Power cord with plug

Standard Equipment

  • 1x filter cartridge (pre-installed in compressor)
  • 0.45 liters of synthetic oil (pre-filled) + 1l spare
  • 1x outlet (filling hose, cross-type filling valve with pressure gauge, G5/8)
  • User Manual
  • Tools
  • O-rings
Technická data
Output 90 l/min
Drive 3-phase electric motor 2.2kW
Weight 49 kg
Length x Width x Height 630 x 390 x 390 mm
Speed 1800 rpm
Noise level 80 dB(A)
Fill time for 10L cylinder to 220 bar 28 min
Molecular sieve 2/3 (115g)
Activated carbon 1/3 (105g)
Cylinder bore 1. St 68mm / 2. St 28mm / 3. St 14mm
Stroke 25 mm
Oil quantity 0,45 l
Paper air filter V2 (PND 13-027 80)
Maximum filling pressure 330 bar
Compressor type Piston
Cooling type Air-cooled
Number of cylinders / Number of stages 3 / 3
Intake pressure (absolute) 1 bar
Suction temperature 20 °C
Air temperature at the outlet after aftercooler 30 °C to 35 °C
Oil LM 750 synthetic compressor oil
Maximum air flow rates according to ČSN EN 12021 (DIN 3188)
Water < 25 mg/m³
Oil < 0,5 mg/m³
CO < 5 ppm
CO2 < 500 ppm
Technické specifikace motoru 2,2 kW
Output 2.2 kW
Rated current 13.7 A
Speed 2,750 rpm
Shaft height 90 mm
Voltage 230 V
Frequency 50 Hz
Type 1-phase
