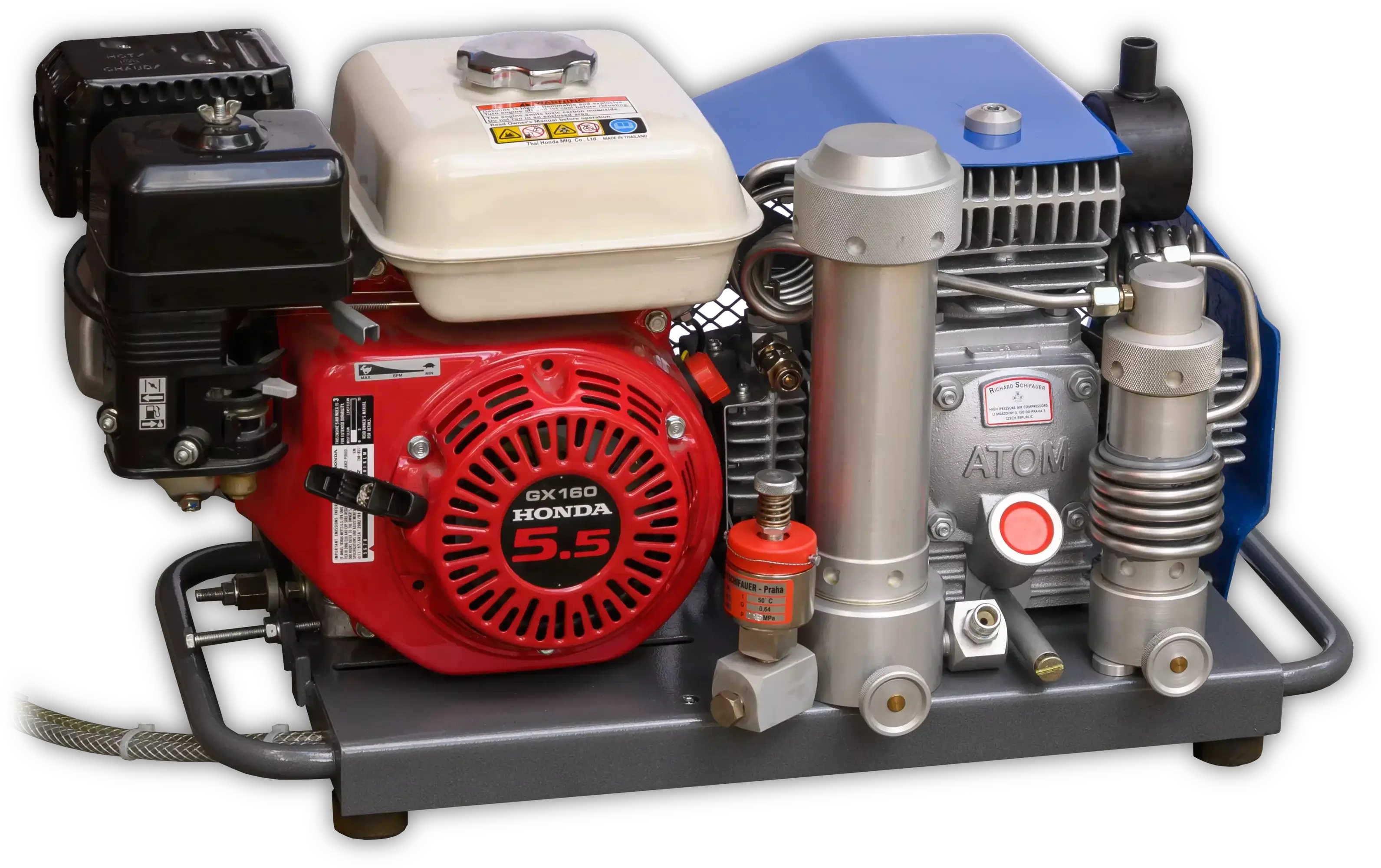

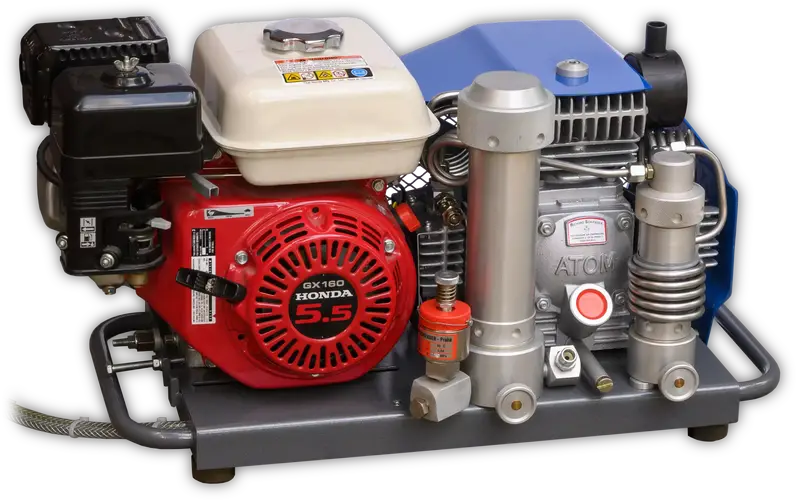

Astra Atom B
excl. VAT
2 572 €
The Astra Atom B is a small, easy-to-use portable air compressor. Thanks to its compact size, it is particularly well-suited for travel and occasional use.
Specification
- Steel frame with carrying handles
- Manual condensate drainage
- Stainless steel intercoolers
- Separators after 2nd and 3rd stage
- Safety valves after every stage
- Pistons with steel piston rings
- Adjustable final pressure (220/330 bar)
- Clean breathing air according to EN 12021 standard
- 4-stroke engine with manual start
Standard Equipment
- 1x filter cartridge (pre-installed in compressor)
- 0.45 liters of synthetic oil (pre-filled) + 1l spare
- 1x outlet (filling hose, cross-type filling valve with pressure gauge, G5/8)
- User Manual
- Tools
- O-rings
| Technická data | |
|---|---|
| Output | 100 l/min |
| Drive | Gasoline engine Honda GX 160 |
| Weight | 45 kg |
| Length x Width x Height | 700 x 390 x 390 mm |
| Speed | 2300 rpm |
| Noise level | 90 dB(A) |
| Fill time for 10L cylinder to 220 bar | 22 min |
| Molecular sieve | 2/3 (115g) |
| Activated carbon | 1/3 (105g) |
| Cylinder bore | 1. St 68mm / 2. St 28mm / 3. St 14mm |
| Stroke | 25 mm |
| Oil quantity | 0,45 l |
| Paper air filter | V2 (PND 13-027 80) |
| Maximum filling pressure | 330 bar |
| Compressor type | Piston |
| Cooling type | Air-cooled |
| Number of cylinders / Number of stages | 3 / 3 |
| Intake pressure (absolute) | 1 bar |
| Suction temperature | 20 °C |
| Air temperature at the outlet after aftercooler | 30 °C to 35 °C |
| Oil | LM 750 synthetic compressor oil |
| Maximum air flow rates according to ČSN EN 12021 (DIN 3188) | |
|---|---|
| Water | < 25 mg/m³ |
| Oil | < 0,5 mg/m³ |
| CO | < 5 ppm |
| CO2 | < 500 ppm |
| Technické specifikace motoru Honda GX 160 | |
|---|---|
| Net power | 3.6 kW |
| Fuel consumption | 1.4 l/hod |
| Fuel tank capacity | 3.1 l |
| Oil capacity | 0.6 l |
| Fuel | Gasoline with an octane rating of 91 or higher |
| Starting | Manual |
| Engine type | 4-stroke single-cylinder OHV gasoline engine |
