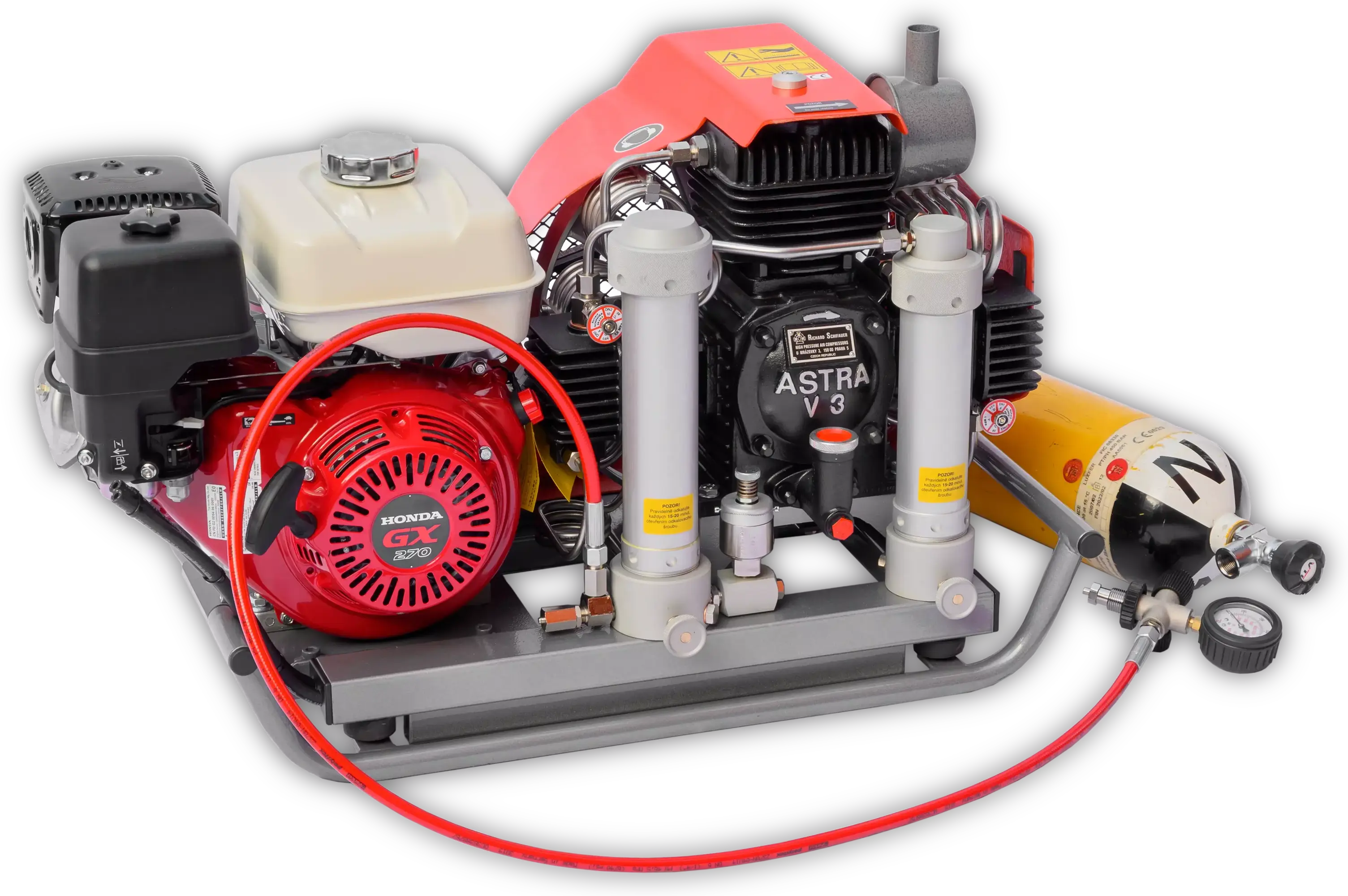

Astra V3 B
excl. VAT
4 948 €
Optional Equipment
1+1 outlet A
+
-
2x220 bar or 2x330 bar,
2x filling hose,
2x filling valve with pressure gauge,
G5/8 thread
excl. VAT
+ 137 €
1+1 outlet B
(combined filling)
+
-
Splitter,
2x filling hose,
1x filling valve with pressure gauge (330 bar),
1x filling valve with 220 bar safety valve (220 bar),
G5/8 thread
excl. VAT
+ 173 €
1+3 outlet
+
-
Filling manifold on the compressor,
4x filling hose,
4x filling valve with pressure gauge,
G5/8 thread
excl. VAT
+ 463 €
Specification
- Pressure maintenance via a check valve
- Steel frame with carrying handles
- Manual condensate drainage
- Stainless steel intercoolers
- Separators after 2nd and 3rd stage
- Safety valves after every stage
- Pistons with steel piston rings
- Adjustable final pressure (220/330 bar)
- Clean breathing air according to EN 12021 standard
- 4-stroke engine with manual start
Standard Equipment
- 2x filter cartridges (1x pre-installed + 1x spare)
- 2 liters of synthetic oil (1l pre-filled + 1l spare)
- 1x outlet (filling hose, cross-type filling valve with pressure gauge, G5/8)
- User Manual
- Tools
- O-rings
| Technická data | |
|---|---|
| Output | 250 l/min |
| Drive | Gasoline engine Honda GX 270 |
| Weight | 80 kg |
| Length x Width x Height | 910 x 430 x 570 mm |
| Speed | 2000 rpm |
| Noise level | 96 dB(A) |
| Fill time for 10L cylinder to 220 bar | 10 min |
| Molecular sieve | 2/3 (150g) |
| Activated carbon | 1/3 (70g) |
| Cylinder bore | 1. St 75,5mm / 2. St 28mm / 3. St 14mm |
| Stroke | 39 mm |
| Oil quantity | 0,95 l |
| Paper air filter | V1 |
| Maximum filling pressure | 330 bar |
| Compressor type | Piston |
| Cooling type | Air-cooled |
| Number of cylinders / Number of stages | 3 / 3 |
| Intake pressure (absolute) | 1 bar |
| Suction temperature | 20 °C |
| Air temperature at the outlet after aftercooler | 30 °C to 35 °C |
| Oil | LM 750 synthetic compressor oil |
| Maximum air flow rates according to ČSN EN 12021 (DIN 3188) | |
|---|---|
| Water | < 25 mg/m³ |
| Oil | < 0,5 mg/m³ |
| CO | < 5 ppm |
| CO2 | < 500 ppm |
| Technické specifikace motoru Honda GX 270 | |
|---|---|
| Net power | 6.3 kW |
| Fuel consumption | 2.4 l/hod |
| Fuel tank capacity | 5.3 l |
| Oil capacity | 1.1 l |
| Fuel | Gasoline with an octane rating of 91 or higher |
| Starting | Manual |
| Engine type | 4-stroke single-cylinder OHV gasoline engine |
